Radio Data System (RDS)

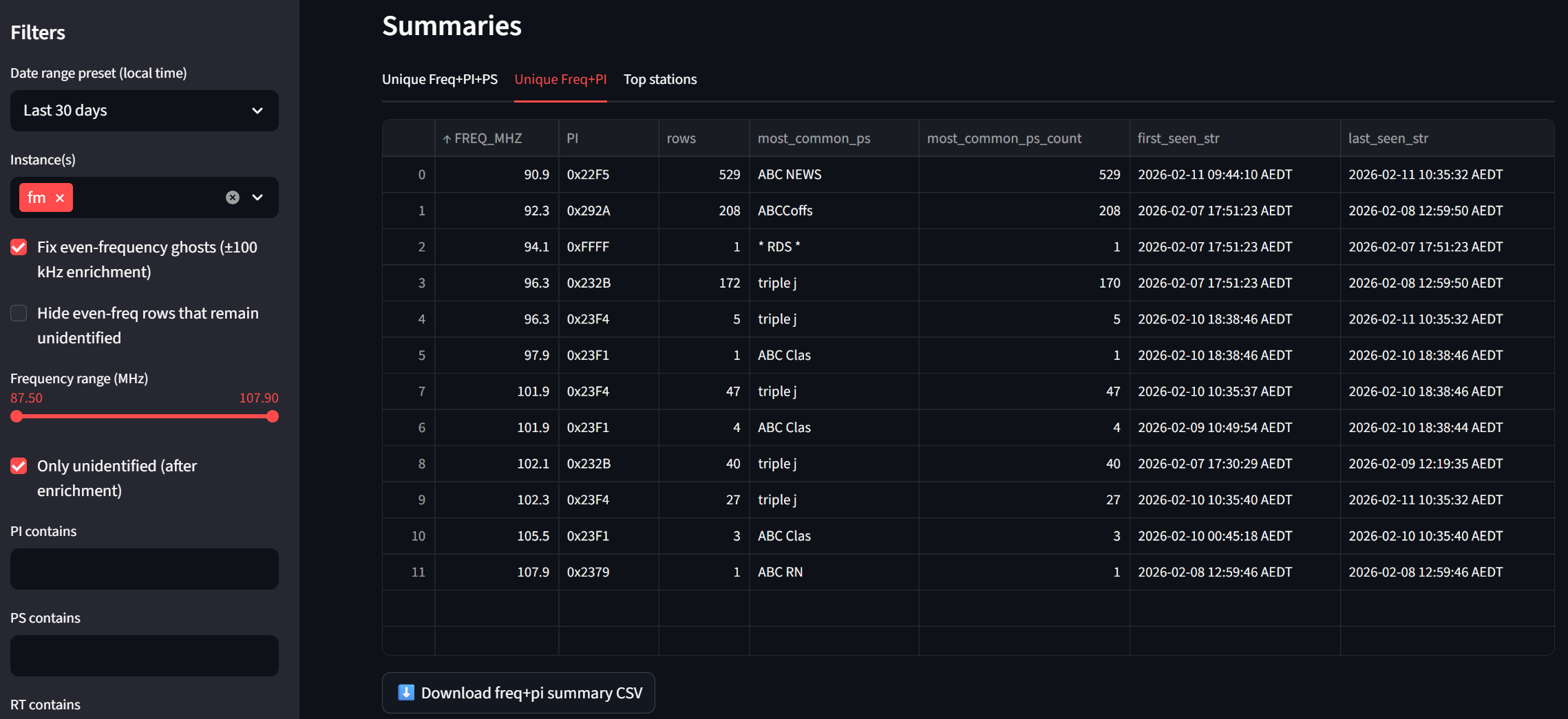

To try to better capture these RDS launches (and PI changes), I’ve set up an RDS monitoring dashboard using my TEF servers. I created a summary table that shows me any RDS signals captured across my 7 FM antennas (which continually scan for RDS when no one is connected) that don’t match with FM-DX-Webserver’s RDS database:

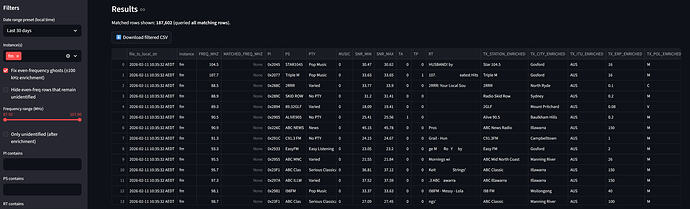

It can also just be used as a general RDS logging/monitoring tool, with filtering as desired:

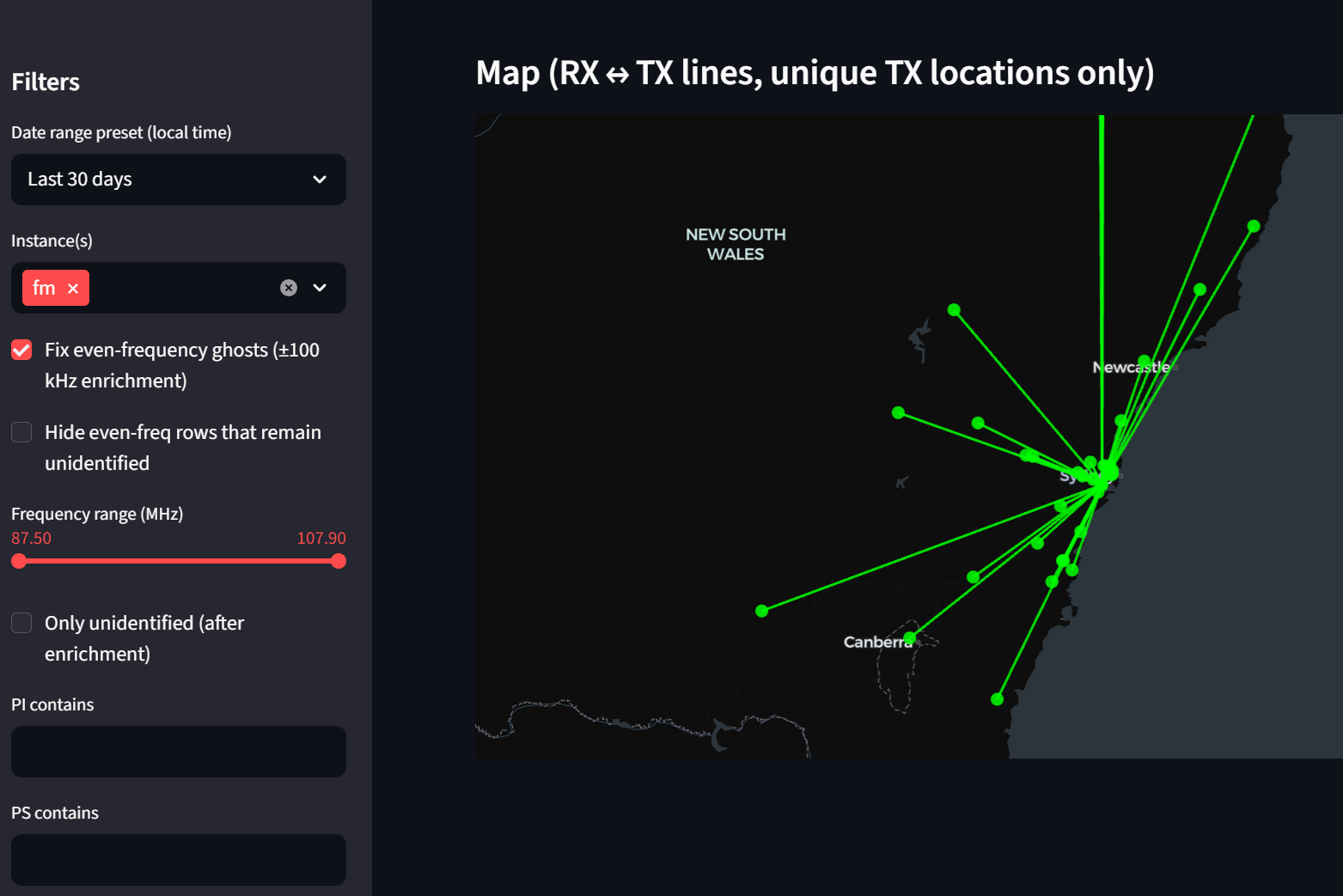

It even does mapping, which is nice:

Next step is to add automatic IM/email notifications for when it detects a new unidentified RDS signal.

For operators of TEF servers, see also my post on a user logging dashboard, to help identify misuse of the servers.
