OMG! Yeah pricey & time consuming chasing it all too…
For RDS Spy have a look at this link. It helped @Moe.
Takes a little or a lot of patience & persistence to get it working.
B/W needs to be minimum of 140kHz & wider on a powerful signal.
I’m thinking maybe Leonids meteor shower dx, given time & distance.
Next period of activity: November 6th, 2020 to November 30th, 2020
Yes, here’s the clip. I was getting classical stations on 104.3 and 105.1. The only ABC Classic FMs on those frequencies are Spencer Gulf North and Renmark/Loxton:
Thanks for the link.
ABC Radio National have been known to play Classical music.
There’s no 19kHz stereo pilot carrier in the MPX spectrum on either station, therefore mono transmissions & more likely ABC Radio National & not ABC Classic.
I could hint at ABC RN Orange & Mt.Wandera & suggest a perusal of ABC RN schedule
at whatever time you listened. Hope that helps
Thanks, OzBark. I think you’re right. It was probably ABC RN from Orange and Batemans Bay then. Not as exciting as SA reception, unfortunately.
Late Night Live on RN often plays classical music as an interlude between talk segments. May have fooled me too, though. Can the existence or otherwise of a stereo carrier be ascertained even when the reception isn’t strong enough for stereo?
In short with SDR software with a MPX display - Yes, unless the signal is very weak.
When you say: “reception isn’t strong enough for stereo”
This could imply for the individual receiver circuitry to light a stereo pilot light on receiver or decide that reception is strong enough to automatically switch from mono to stereo. The receiver decides this.
That said typically in Australia the measured 19kHz stereo pilot carrier peak is around 22dB below presumed unmodulated carrier peak on SDR#. Some stations like Todays Country 94.1 have their stereo pilot carrier set very high at around -15dB
Koori Radio 93.7 seems to be running at very low power at the moment, if you want to see if you can receive anything distant on 93.7.
Not a sausage. Why can’t these events happen during times of DX reception?
Bega would be on my hit list or Rebel Cooktown or 3HFM…
The Bureau’s Bairnsdale radar recently got upgraded to the high sensitivity Doppler type. It is now readily showing tropo echoes over Bass Strait, so this could be a good indicator for VIC to TAS tropo.
There are some tropo echoes at the moment, though Melbourne is firmly in the hot northerly. The echoes are centred off Lakes Entrance.
Yep, not a peep here on 93.7 either.
But there’s enough enhancement for Mt Wandera ABCs to be heard, along with 94.3 SKY Sports from Goulburn. And I can get more Sydney community stations tonight than usual too.
The opposite is also true – there’s an enhancement of Newcastle signals here in Sydney. Batemans Bay is also coming in.
93.7 Koori not receivable at all here in Stanhope Gardens. Actually tropo is causing strong reflections tonight with Wollongong significantly weaker, no RDS on Wave and i98. Power Fm and Vox fm just above the noise floor.
Wollongong tv glitching a bit and not co channel from Newcastle.
A few years back there was a post on the TV DXing thread asking for people to post their TV DX setups. Just curious as to people’s AM and FM DX antenna setups as well.

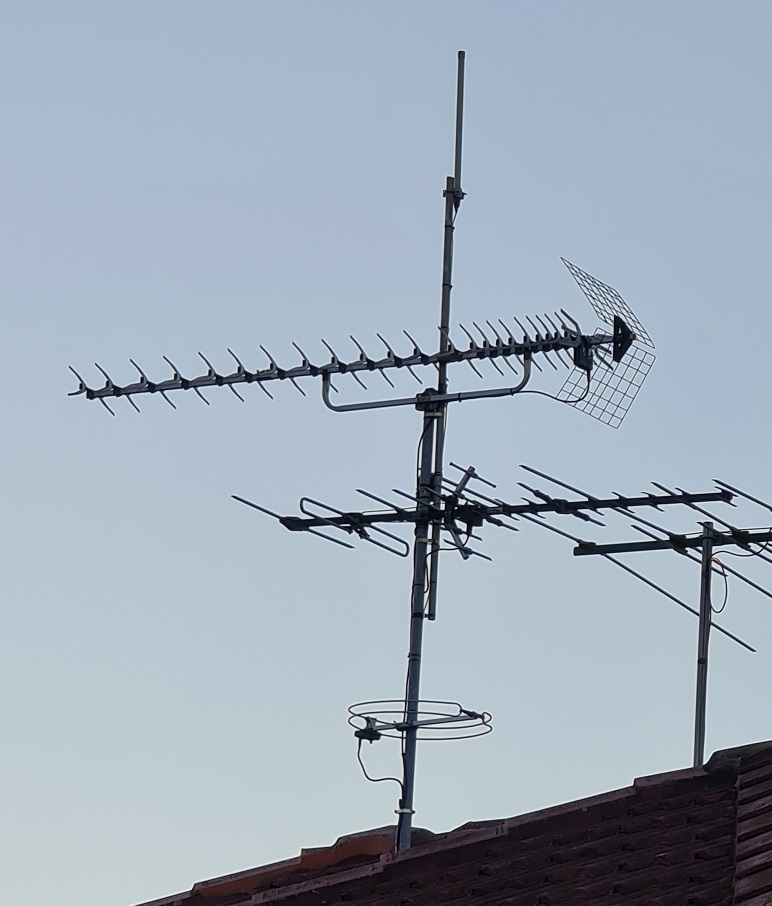

Here’s mine - an omnidirectional dipole on the roof for FM:
And above the FM antenna:
Looking to add HF to the setup as well, though overcoming the RF noise from all the electrical equipment around my house is an issue. Any suggestions as to a good 0-30 MHz aerial that’s not too big/expensive?
note for DXers - our local RN outlets on 100.9/95.3 has dropped the stereo pilot. Now FM mono only
with the power out today for pole maintenance, gave me an opportunity to test noise levels & found the digital modem type noise was STILL present. So this ruled out any of the other flats as the source & seems to be strongest out the front near a metal door/panel on the wall. So I’d surmise its the timer system for the outdoor lights causing this & the timer must have a battery backup.

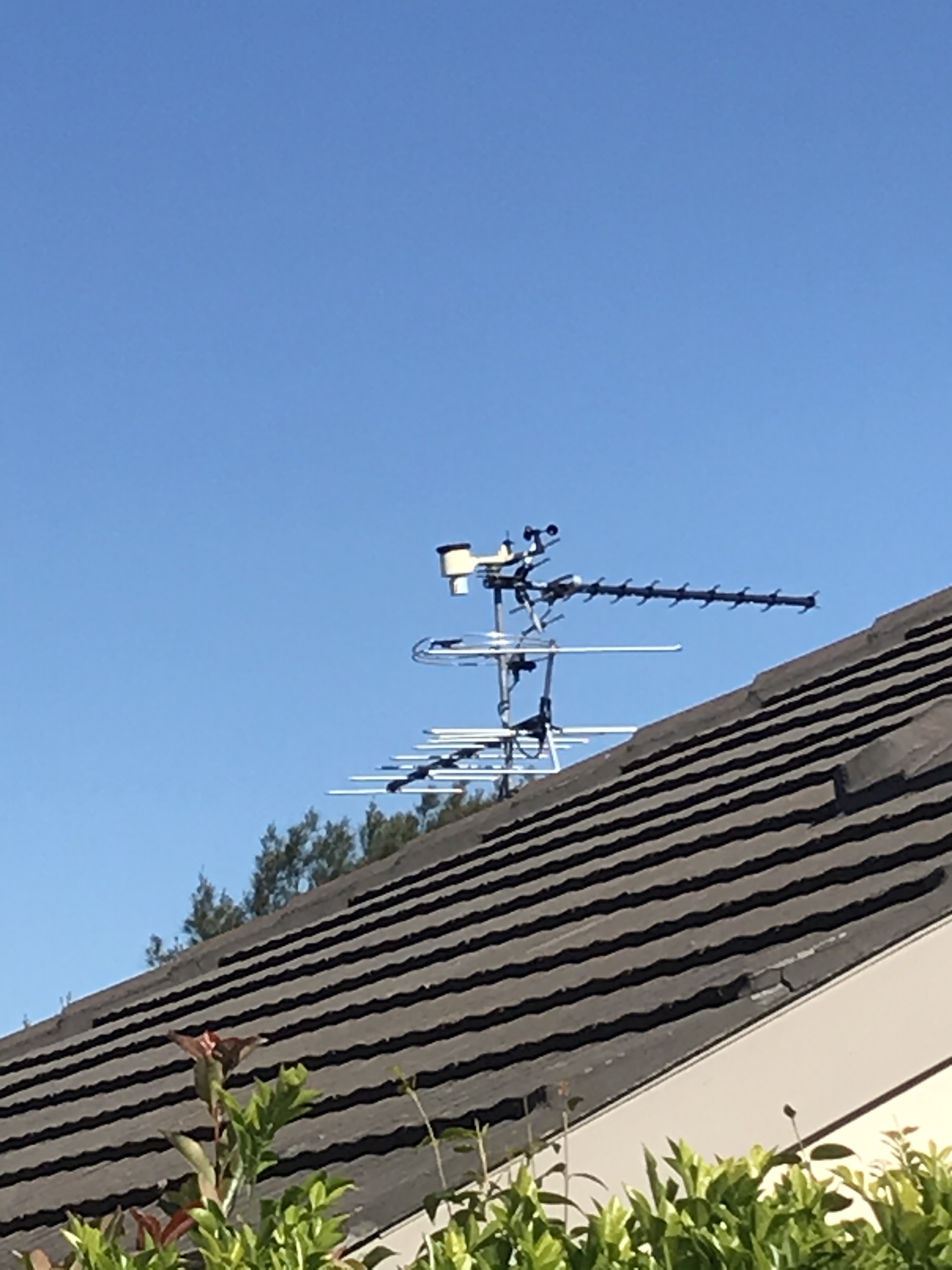

My dxing setup-
Top Ambient Weather WS2905 broadcasting to Weather Underground
UHF antenna- Digitek 20 element 01BUW20L (28-51) purchased from Bitek for Wollongong tv
Fm antenna- Matchmaster 03MM-1EFM
VHF antenna- Digitek 01DV310 10 element band 3 antenna
Masthead amp (not visible) - Matchmaster 10MM-UA30PDF, UHF VHF and Fm all fed through the amp. UHF at max gain 30db, Fm and VHF mid gain 15db.
Signal to 4 outlets.
Thanks for the detailed post and picture, Ant5476.
That’s prompted me to add some extra detail about my setup:
I disconnected the FM aerial from the merged output as there was too much signal loss to get the weak FM stations. It now runs directly from the aerial on the roof to the SDR receiver in the attic. The ADS-B receiver also sits in the attic to minimise signal loss from a long cable run.
Nice setup, going by they orientation of your antennas you are obviously south of the city.
The combined VHF / UHF antenna looks like a Hills Spectrum max SMX24B4+
How is Wollongong tv reception in general in your area?
What is your general range for permanent fm reception with your setup?
The ABC must have been taking advice from Joan Armatrading… (“Drop The Pilot”).
Yes, that’s correct. I’m in the south of the city.
It might be a knockoff of the Hills antenna. It was purchased prior to the restack moving SBS to VHF, but it pulls in the Kings Cross UHF translators.
Wollongong TV in my area is good. Before putting up the UHF aerial I could get it with rabbit ears inside the house. Many houses in my area seem to have dual Sydney/Wollongong set-ups.
A weak 2BS is the furthest station I can get on the SDR, but my car radio at ground level can pull in the Mount Canobolas stations as permanent reception where I am (around 200km away).
